Engmattec – Portable Hydraulic Hose Crimper – (10-38 mm) 95 Ton – 10,000 psi 2-Stage Hand Pump – 8 Dies

Engmattec – Portable Hydraulic Hose Crimper – (10-38 mm) 95 Ton – 10,000 psi 2-Stage Hand Pump – 8 Dies

SKU ES-HC-P392-1038
by Engmattec
$3,573.90
$3,573.90 - $3,573.90
$3,573.90
$3,395.20
$3,395.20 - $3,395.20
$3,395.20
Product Overview:

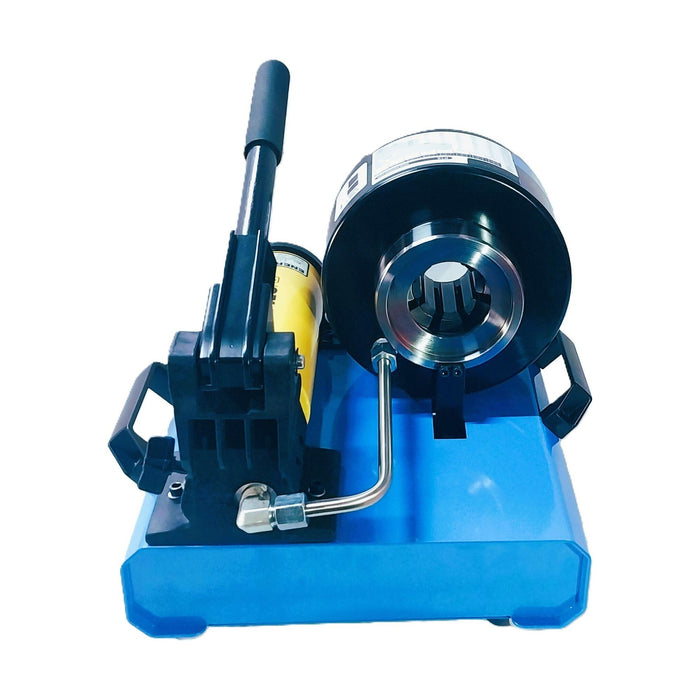

This portable hand-operated hydraulic hose crimper is designed for efficient, on-site hose assembly and repair. Equipped with an Enerpac two-stage high-speed 10,000 psi hand-operated pump and an optional air-operated pump, it reduces manual effort while increasing productivity. The unit includes 8 die sets, allowing crimping diameters from 10 mm to 38 mm. Ideal for automotive, earthmoving, and marine applications, it features a removable crimp head, a precision micrometer dial, and a plastic storage case for die sets.
  • Versatile Crimping Range: Supports hose sizes from 1/8" to 3/4".
  • High Crimping Pressure: Generates up to 95 tons of force.
  • Dual Pump Operation: Includes hand and optional air-operated pump.
  • Precision & Accuracy: Micrometer dial with 0.05 mm repeatability.
  • Portable & Efficient: Lightweight design for field service work.
Specifications
Brand Engmattec
Crimping Capacity 1/8" to 3/4" (2-wire hoses)
Crimping Force 95 tons
Die Sets Included 8 (Crimping range: 10 mm to 38 mm)
Pump Type Hand-operated Enerpac P392 (10,000 psi)
Optional Pump Air-operated 10,000 psi pump
Weight 30 kg (Unit) + 7 kg (Pedal) / 50 kg Total
Shipping Weight 53 kg
Dimensions 400 mm (L) x 330 mm (W) x 280 mm (H)
Crimping Head Removable for tight access jobs
Crimp Diameter Adjustment Micrometer dial with LED indicator
Recommended Applications Earthmoving, Automotive, Marine, Field Service
Storage Plastic case for die sets included
